Titan Research Group Supply delivers autoclaves worldwide-trusted by research laboratories, medical clinics, and industrial manufacturers that demand uncompromising performance. From laboratory sterilizers to industrial autoclaves for composite curing, our solutions keep operations running safely and efficiently.
An industrial autoclave is a pressurized chamber that applies high-temperature steam, controlled pressure, and precise hold times to cure, vulcanize, bond, or sterilize materials at production scale. As a global autoclave manufacturer, TRG Supply designs and fabricates commercial autoclave systems for composite curing, aerospace laminates, rubber vulcanization, glass lamination, medical waste treatment, and timber processing. Whether you need a large autoclave for sale or a fully custom-designed unit, the category links below funnel you straight to the right solution.
An industrial autoclave is a heavy-duty pressure vessel that combines saturated steam (or heated gas), elevated pressure, and a programmed temperature cycle to process materials that cannot be cured or sterilized at atmospheric conditions. Loads enter a sealed chamber, air is removed, and steam is introduced until the target pressure and temperature are reached and held for a validated dwell time.
Industrial autoclaves typically operate at 120-180 °C and 3-10 bar, far beyond the throughput and chamber size of a benchtop laboratory autoclave. Laboratory units sterilize small instrument loads; industrial and commercial autoclave systems cure composite laminates, vulcanize rubber, laminate glass, treat timber, and sterilize bulk medical waste in production volumes. Because every chamber is a code-stamped pressure vessel, build quality and certification matter as much as cycle performance.
Each autoclave category below has a dedicated page with detailed specifications, cycle data, and project examples. Use these summaries to identify your application, then follow the link to the right solution.

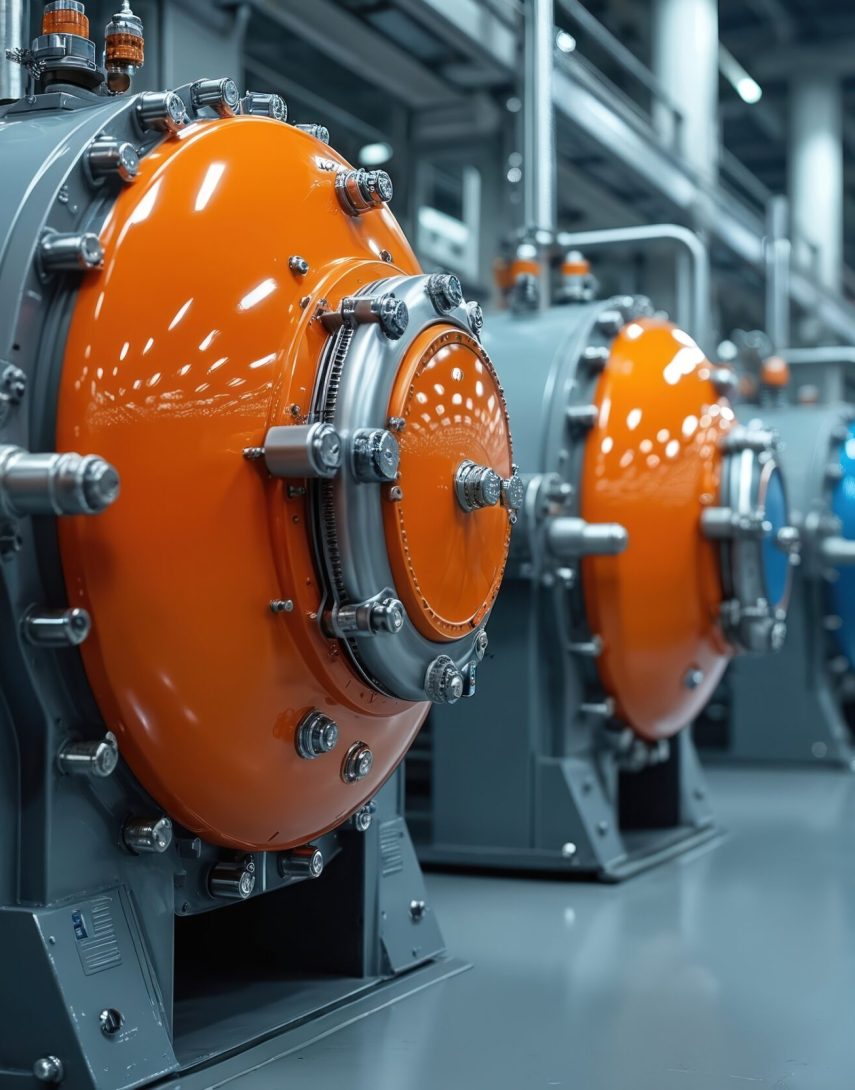

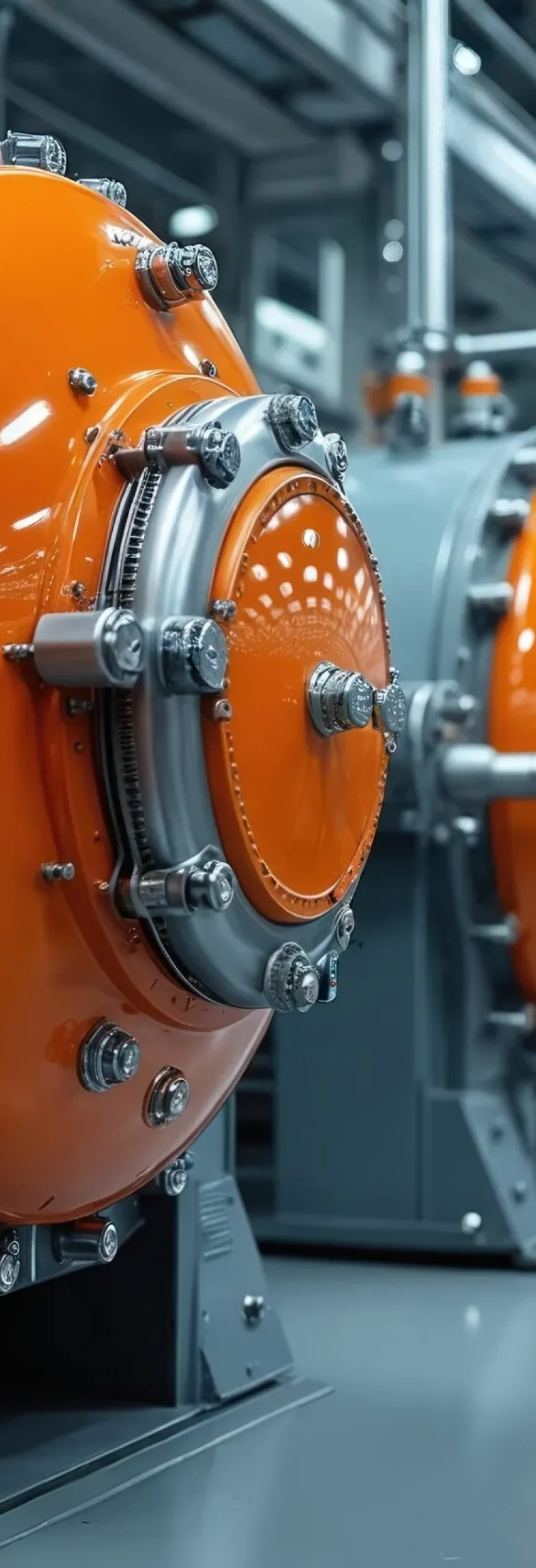

Built for prepreg and resin-infused laminates, our composite curing autoclaves apply simultaneous heat, vacuum, and pressure to consolidate plies and minimize voids. Used in wind energy, motorsport, and industrial composites where bond strength and repeatable cure profiles are non-negotiable.
Our aerospace autoclaves are custom-designed for structural carbon-fiber components, fuselage sections, and control surfaces, with tight thermal uniformity and documentation that supports aerospace quality requirements.
For tires, hoses, gaskets, belts, and rubber-lined rollers, our rubber vulcanizing autoclaves deliver uniform crosslinking at 140-180 °C for consistent elasticity, durability, and heat resistance.
Our glass lamination autoclaves bond automotive and architectural laminated glass with even pressure and temperature for optically clear, defect-free panels.
For hospitals and centralized treatment facilities, our medical waste autoclaves render regulated biowaste safe through validated steam sterilization, offering a lower-cost alternative to incineration.
When throughput drives the project, our large capacity autoclaves handle oversized loads, long parts, and high-volume batches on cart-and-rail loading systems. This is the category to explore if you are searching for a large autoclave for sale.
Our wood treatment autoclaves pressure-impregnate timber with preservatives for rot, insect, and weather resistance in construction and utility applications.
Every TRG Supply autoclave is custom-designed to the load, cycle, and code requirements of the project. The ranges below show the typical envelope; exact figures are confirmed during the design review.
|
Parameter |
Typical Range |
|
Chamber diameter |
1 ft to 20+ ft, application dependent |
|
Chamber length |
Compact to 60+ ft for long parts |
|
Pressure range |
Up to 10 bar (~150 psi), design rated |
|
Temperature range |
Up to 250 °C depending on process |
|
Control systems |
PLC/HMI with data logging and validation |
|
Material options |
Carbon steel, stainless steel, clad alloys |
An industrial autoclave is a regulated pressure vessel, and the certification behind it determines where you can legally install and operate it. TRG Supply builds to the international codes your project and jurisdiction require, with full documentation packages for inspection and audit.
Certification protects three things: global compliance for installation, a documentation trail for audits and insurers, and quality assurance that the vessel performs as designed for its full service life.
Organizations worldwide rely on Titan Research Group Supply for industrial autoclaves, medical autoclaves, and laboratory sterilizers that perform, protect, and endure.
Compare autoclave types at a glance, then follow the link to the dedicated page for full specifications.
|
Autoclave Types |
Primary Applications |
Typical Industries |
Relative Capacity |
Typical Pressure |
|
Laminate curing |
Wind, motorsport |
Medium-Large |
6-7 bar |
|
|
Structural composites |
Aerospace, defense |
Large |
7-10 bar |
|
|
Vulcanization |
Rubber, automotive |
Medium-Large |
4-8 bar |
|
|
Glass bonding |
Auto, architecture |
Medium |
10-14 bar |
|
|
Biowaste sterilization |
Healthcare |
Medium-Large |
3-4 bar |
|
|
High-volume processing |
Multi-industry |
Very Large |
Application dependent |
|
|
Preservative impregnation |
Construction, utility |
Large |
Low-Medium |
Need a vessel beyond the autoclave range? Explore our full line of industrial pressure vessels.
At TRG Supply, we understand that autoclave size matters just as much as its performance. Our commercial autoclaves come with customizable autoclave chambers designed to maximize capacity without compromising efficiency. Explore our full range of autoclaves and learn why TRG Supply is a trusted name among autoclave steam sterilizer manufacturers worldwide.
Cost depends on chamber size, pressure and temperature rating, controls, automation, and certification. Smaller units are a modest investment, while large custom-designed systems are a capital purchase. Contact our team with your load size and cycle requirements for a tailored quote.
Size is driven by your largest part or batch, throughput targets, and floor space. We confirm chamber diameter and length during the requirement review so the vessel matches both today’s volume and planned growth. If high volume is the priority, review our large capacity autoclaves.
Look for ASME Section VIII with a U-stamp, CRN for Canadian provinces, and PED 2014/68/EU for Europe, alongside ISO 9001 quality management. The right combination depends on where the autoclave will be installed and operated.
Aerospace, composite manufacturing, rubber and tire production, automotive and architectural glass, healthcare waste treatment, research facilities, wood treatment, and general industrial processing all rely on industrial autoclaves.
Lead time depends on chamber size, code requirements, and automation. After the design is approved, fabrication, testing, and documentation follow a defined schedule, and we align delivery with your project timeline. Reach out for a current estimate for your configuration.
The terms overlap. “Commercial autoclave” usually emphasizes heavy-duty, business-scale sterilization and processing, while “industrial autoclave” stresses large chambers and production throughput for curing, vulcanizing, and bonding. Both are code-stamped pressure vessels, and TRG Supply custom-designs each to the application.
